PPC Compression F-Type Connectors
Product Code: 798591

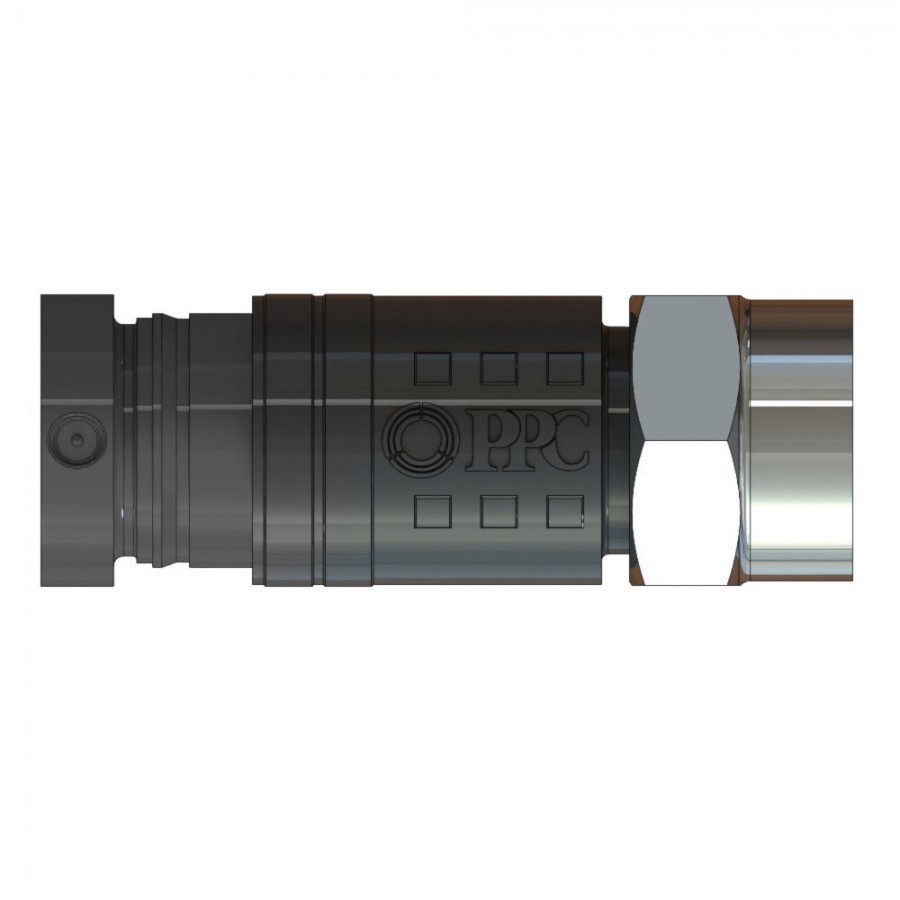

Coax Compression Connector F-Type CT65 75 Ohm CMX Series Grey
Pack Of 50
The CMX satellite series compression connector is designed to excel on TV & satellite cables. The en ... More Details
Price: £14.03 ex. VAT
Login to retrieve your previous cart.
The CMX satellite series compression connector is designed to excel on TV & satellite cables. The engineered polymer body and compression ring provide simple installation while maintaining high performance both mechanically and electrically
- Blue (798588) - Works with HT100 cable & all equivalents including CT100, & WF100
- Grey (798591) - Works with CT65 cable & all equivalents including WF65
- Bandwidth 0MHz to 3GHz
- Return loss minimum -25dB to 3GHz
- Insertion loss Less .18dB
- Operating voltage 90V (at 60Hz continuous AC)
- Operating temperature -40 degrees C to 60 degrees C
- For alternative cable options, please contact us
- Use PPC Coax Compression Tool for termination
- Ideal for use with Ultima HT100 75Ohm Coax Cables
