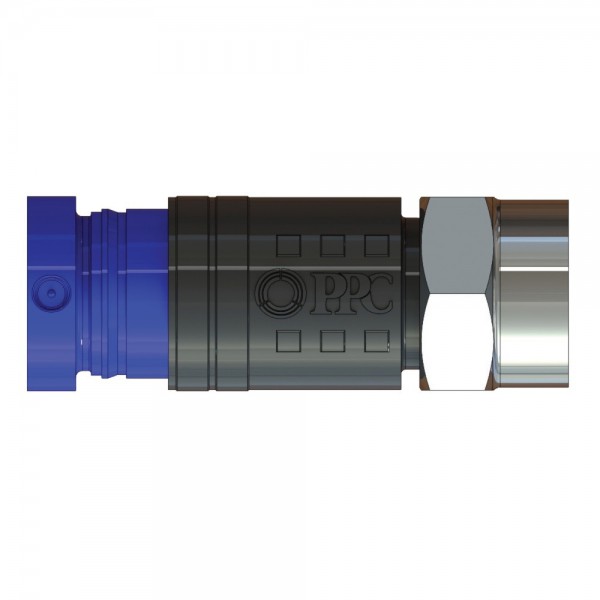

PPC Compression F-Type Connectors (2 Products)

The CMX satellite series compression connector is designed to excel on TV & satellite cables. The engineered polymer body and compression ring provide simple installation while maintaining high performance both mechanically and electrically

• Blue (798588) - Works with HT100 cable & all equivalents including CT100, & WF100
• Grey (798591) - Works with CT65 cable & all equivalents including WF65
• Bandwidth 0MHz to 3GHz
• Return loss minimum -25dB to 3GHz
• Insertion loss Less .18dB
• Operating voltage 90V (at 60Hz continuous AC)
• Operating temperature -40 degrees C to 60 degrees C
• For alternative cable options, please contact us
• Use PPC Coax Compression Tool for termination
• Ideal for use with Ultima HT100 75Ohm Coax Cables
