RidgeGear Manhole Tripod Kit RGR1/TRIPODKIT1

This Rescue Tripod is portable, lightweight and is easy to erect on site. Due to its adjustability the tripod is adapatble to the most demanding surfaces and varying ground conditions. The lower and middle legs can be adjusted at 80mm intervals. It includes two additional anchorage points (SWL 200kg) on the underside of the head which allow for additional primary/secondary systems. The unit can be used for numerous applications such as confined access, entry, rescue, retrieval, manhole, silos & trenches, to name a few

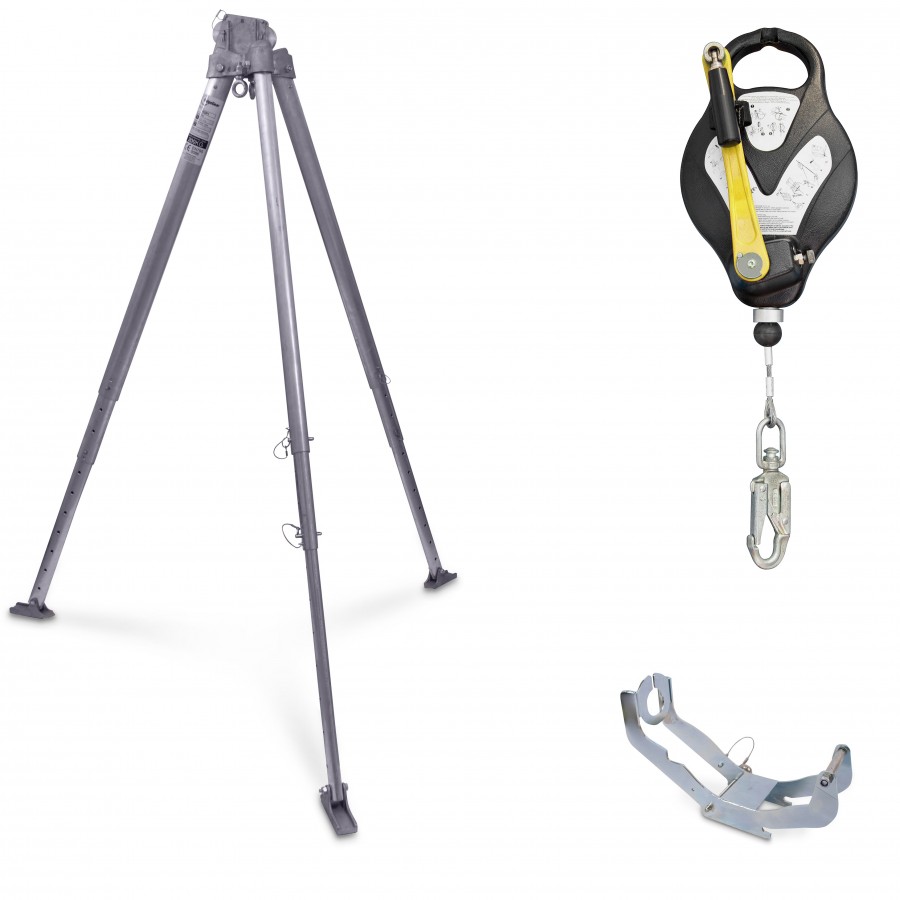

• This tripod kit contains the following:
• RGR1 Rescue tripod - An aluminium cast tripod with extruded legs. Accredited to EN 795:2012 Type B, Min Height 1.7m, Max Height 2.7m, Footprint span 1-1.8mm, Safe working load 200Kg, Weight 17.6Kg
• RGA4 Fall arrest block with recovery winch - Double action high-tensile steel alloy connector, in alloy case with 5mm galvanised wire cable, Accredited to EN362:2002, Max user weight 140Kg, Max force <6kN, Handle turn ratio 1:10, Handle force ratio 1:10, Weight 11.4Kg
• RGA4B Tripod bracket - Made from steel, Weight 1.4Kg
