Planet Industrial Media Converters (4 Products)

For the places difficult to find the power outlet, the Planet industrial series media converters provide the easiest way to power network equipment such as PTZ (Pan, Tilt & Zoom) IP cameras, speed dome IP cameras, colour touch-screen VoIP telephones, multi-channel (IEEE 802.11a/b/g/n) wireless LAN access points and other network devices that need higher power to function normally. For instance, users can flexibly install the security IP camera, wireless access point and other IEEE 802.3at/IEEE 802.3af compliant network equipment in the public areas such as stations, freeways, airports and campuses for surveillance and wireless roaming needs

• DIN rail and wall mount design
• IP30 aluminium metal case protection
• -40 to 75 degrees C operating temperature
• 24 and 48V DC, redundant power with polarity reverse protect function and connective removable terminal block for master and slave power
• Supports EFT protection 6000V DC for power line
• Supports 6000V DC Ethernet ESD protection
• Model IGTP-805AT: IEEE802.3at/802.3af PoE (30W PoE power)
• Model IGTP-805AT: Requires Mini Gbic plug-in LC fibre module. Multimode (779615) up to 55Mtrs, Singlemode (776319) up to 10km

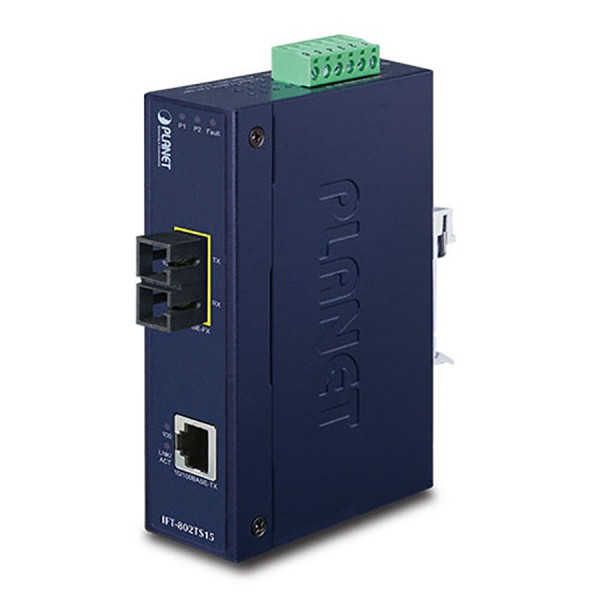

• Models IFT-802: are 10/100 units for low data rate applications
