Blustream Essential HDBaseT Matrix Kits
Product Code: 831097
Essential HDBaseT Matrix Kit 4x4 4K 60Hz 4:4:4 @ 40m 1080p @ 70m 4x HDMI-In 4x HDBaseT & 1x HDMI-Out 4 Receivers HMXL44CS-KIT
The Blustream Essential 4x4 HDBaseT matrix offers unprecedented performance and value for the custom ... More Details
Login to retrieve your previous cart.

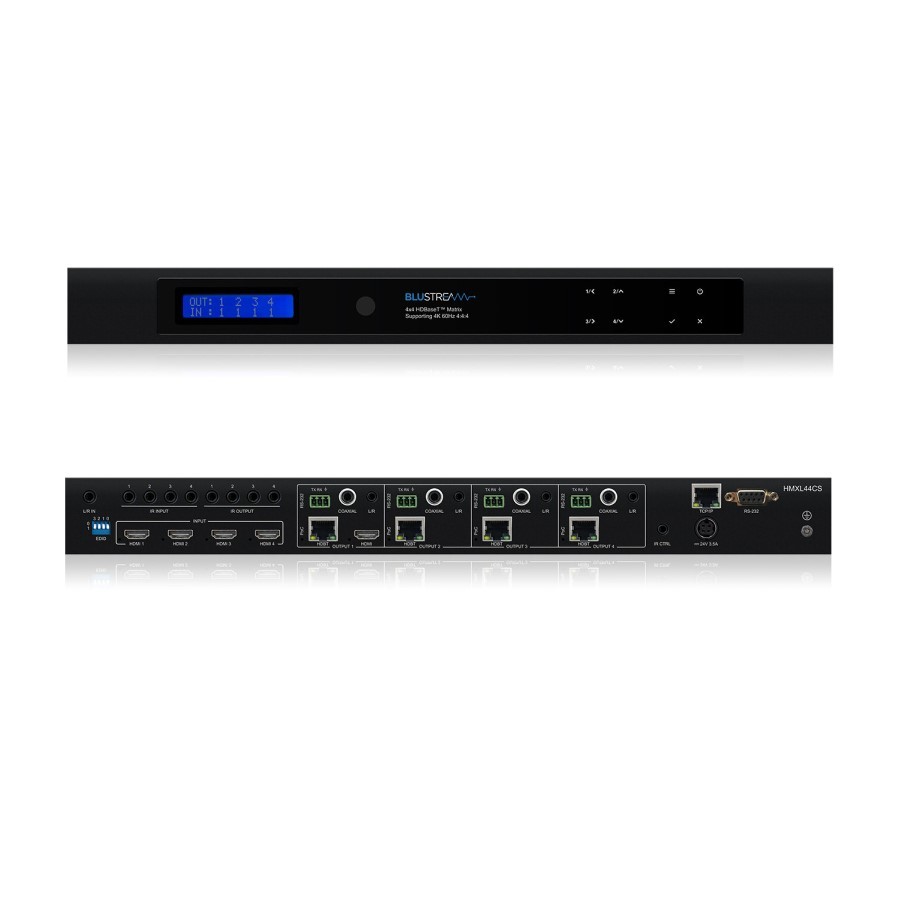

The Blustream Essential 4x4 HDBaseT matrix offers unprecedented performance and value for the custom installation market. It delivers HDMI, Bi-directional IR and PoH (Power over HDBaseT) up to lengths of 70m over a single Cat5e/6/6A cable. The matrix also provides advanced features including audio breakout with pre-amp variable line-level control, simultaneous HDBaseT/HDMI outputs, RS-232 pass through to enable 3rd party control of displays and a web browser interface module for control and configuration of the matrix
- Advanced HDBaseT technology offering uncompressed video and audio with zero latency
- Features 4x HDMI inputs which can be independently routed to 4 x HDBaseT/HDMI outputs
- HDMI audio breakout to associated Digital Coax, and analogue L/R audio outputs with pre-amp line level volume control
- Supports 4K UHD video up to 40m (4K @ 60Hz 4:2:0)
- Supports 1080p at distances up to 70m
- Supports 3D signal display
- Simultaneous HDBaseT and HDMI outputs to allow connection to dual displays per zone
- Bi-directional RS-232 from all input and output locations

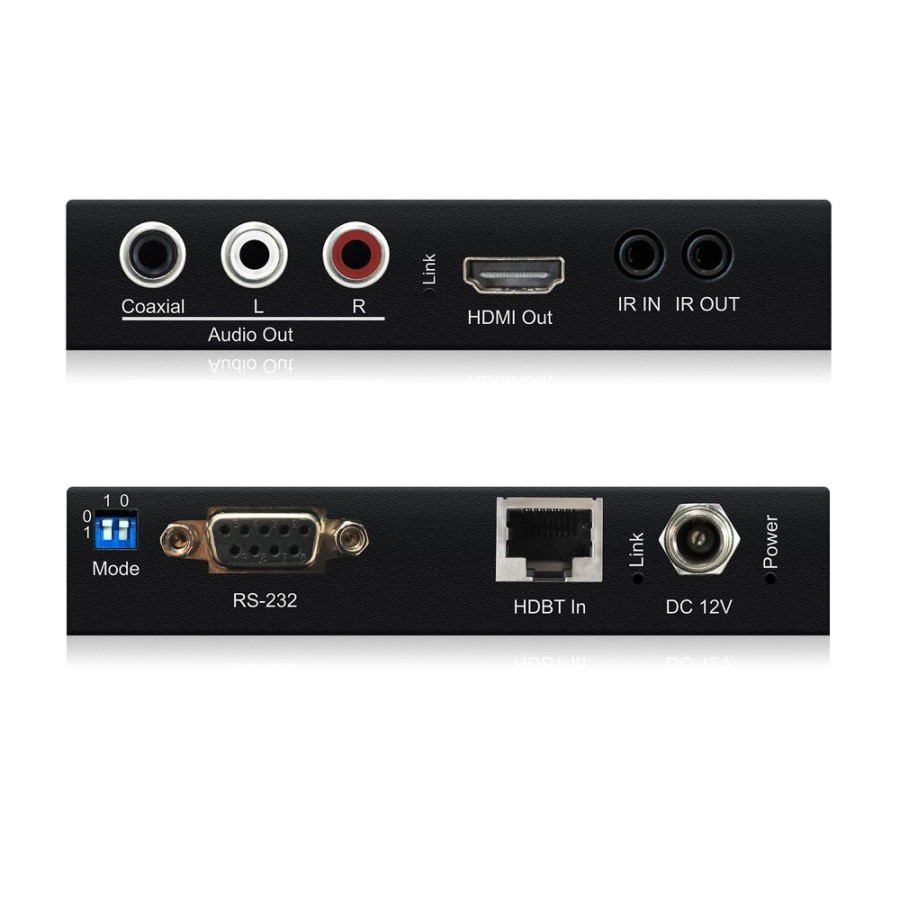

- Supplied with Blustream IR receivers and emitters
- Control via front panel , IR, RS-232 and TCP/IP
- Supplied with four receivers
